frp 是什么？
frp 是一个专注于内网穿透的高性能的反向代理应用，支持 TCP、UDP、HTTP、HTTPS 等多种协议。可以将内网服务以安全、便捷的方式通过具有公网 IP 节点的中转暴露到公网
github源码！;https://github.com/fatedier/frp/
官方文档！;概览 | frp
oidc认证
frp一般是使用token认证，但是token过于简单，因此，决定使用oidc进行认证
OIDC 是 OpenID Connect 的简称，验证流程参考 Client Credentials Grant。
oidc搭建
本次是基于Django进行搭建
依赖文件requirement.txt如下
Django==4.1 django-cors-headers==3.13.0 django-oauth-toolkit==2.1.0 djangorestframework==3.13.1 PyJWT==2.4.0
主要使用的是 django-oauth-toolkit 模块，该模块官方文档 Welcome to Django OAuth Toolkit Documentation — Django OAuth Toolkit 2.1.0 documentation
然后根据文档进行操作
1.启动一个新的 Django 项目并"rest_framework"和"oauth2_provider"添加到您的INSTALLED_APPS设置中
INSTALLED_APPS = ( 'django.contrib.admin', ... 'oauth2_provider', 'rest_framework', )
2.现在我们需要告诉 Django REST Framework 使用新的身份验证后端。请在settings.py模块的末尾添加以下行
REST_FRAMEWORK = {
'DEFAULT_AUTHENTICATION_CLASSES': (
'oauth2_provider.contrib.rest_framework.OAuth2Authentication',
),
'DEFAULT_PERMISSION_CLASSES': (
'rest_framework.permissions.IsAuthenticated',
)
}3.创建一个简单的 API 来访问用户和组
a，创建一个oauth.py文件，内容如下
#!/usr/bin/env python
# -*- coding:utf-8 -*-
# project : xfrp
# filename : oauth.py
# author : ly_13
# date : 2022/9/2
from django.contrib.auth.models import User, Group
from rest_framework import generics, permissions, serializers
from oauth2_provider.contrib.rest_framework import TokenHasReadWriteScope, TokenHasScope
# first we define the serializers
class UserSerializer(serializers.ModelSerializer):
class Meta:
model = User
fields = ('username', 'email', "first_name", "last_name")
class GroupSerializer(serializers.ModelSerializer):
class Meta:
model = Group
fields = ("name",)
# Create the API views
class UserList(generics.ListCreateAPIView):
permission_classes = [permissions.IsAuthenticated, TokenHasReadWriteScope]
queryset = User.objects.all()
serializer_class = UserSerializer
class UserDetails(generics.RetrieveAPIView):
permission_classes = [permissions.IsAuthenticated, TokenHasReadWriteScope]
queryset = User.objects.all()
serializer_class = UserSerializer
class GroupList(generics.ListAPIView):
permission_classes = [permissions.IsAuthenticated, TokenHasScope]
required_scopes = ['groups']
queryset = Group.objects.all()
serializer_class = GroupSerializerb.添加URL
from django.contrib import admin
from django.urls import path, include
from api.views.oauth import UserList, UserDetails, GroupList
admin.autodiscover()
urlpatterns = [
path("admin/", admin.site.urls),
path('o/', include('oauth2_provider.urls', namespace='oauth2_provider')),
path('users/', UserList.as_view()),
path('users/<pk>/', UserDetails.as_view()),
path('groups/', GroupList.as_view()),
]4，添加oauth配置信息 到settings.py模块中
OIDC还需要jwt令牌签名算法，使用的是rs256 非对称加密，因此还需要一个rsa私钥，可以通过openssl命令生成
openssl genrsa -out oidc.key 4096
注意：此密钥的内容必须保密。不要将它放在您的设置中并将其提交给版本控制！
from oauthlib.oauth2.rfc6749.tokens import signed_token_generator
OAUTH2_PROVIDER = {
"OIDC_ENABLED": True,
"OIDC_RSA_PRIVATE_KEY": open(os.path.join(BASE_DIR, 'oidc.key'), 'r').read(),
"SCOPES": {
"openid": "OpenID Connect scope",
"read": 'Read scope',
'write': 'Write scope',
'groups': 'Access to your groups'
},
"EXTRA_SERVER_KWARGS": {
"token_generator": signed_token_generator(open(os.path.join(BASE_DIR, 'oidc.key'), 'r').read(),
**{'iss': 'http://10.66.8.100:8000/o', 'aud': 'openid'})
},
}5，迁移数据，并创建管理员用户
python manage.py migrate python manage.py createsuperuser python manage.py runserver
6，访问admin,然后注册新的应用程序
http://localhost:8000/admin
然后再访问
http://localhost:8000/o/applications/

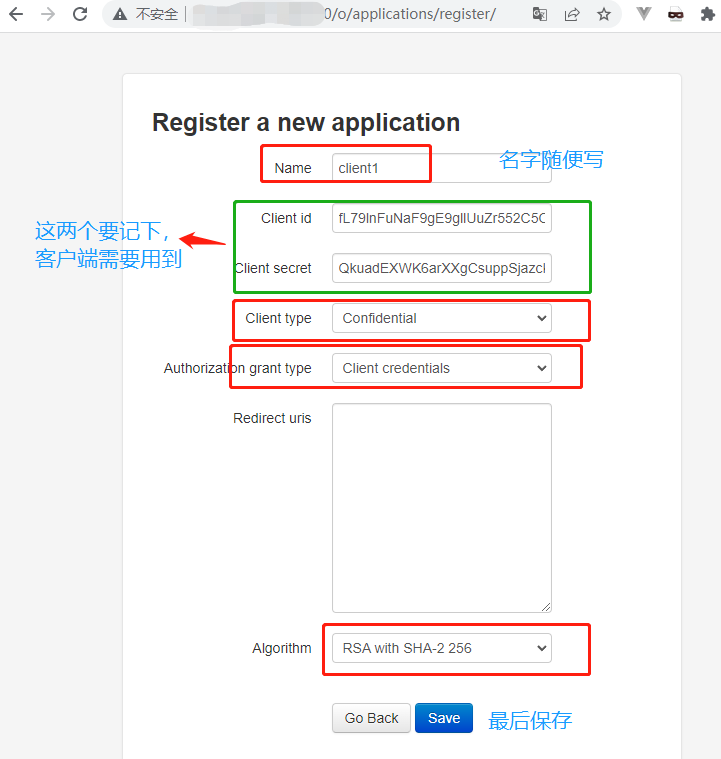

a.进行注册应用
b.配置frps服务端，编写frps.ini文件
[common] bind_port = 8888 authentication_method = oidc oidc_issuer = http://10.66.8.100:8000/o oidc_audience = openid
c.配置frpc客户端，编写frpc.ini文件
[common] server_addr = 10.66.8.100 server_port = 8888 authentication_method = oidc oidc_client_id = Aybonk9RoG1I6YzTLKUDnPXU647rtJymig0I2PPj oidc_client_secret = fNPvjFbZv6Q0IUwE4o2QAHAWjtdlQbgO75RjU3IbKEdythlKmUu3ZShlO8juOhsxCbE7U9gAgXQTbUMsoXt5YrshAt2CwARSz63T5OfnbhwPNl8HtsdqfG2HMFRjMaCK oidc_audience = openid oidc_token_endpoint_url = http://10.66.8.100:8000/o/token/ [nginx] type = tcp local_ip = 127.0.0.1 local_port = 80 remote_port = 29999

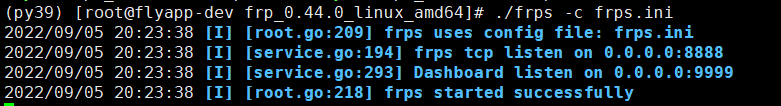

d.启动服务端

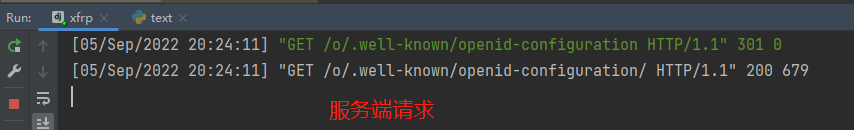

会发现django服务有请求如下

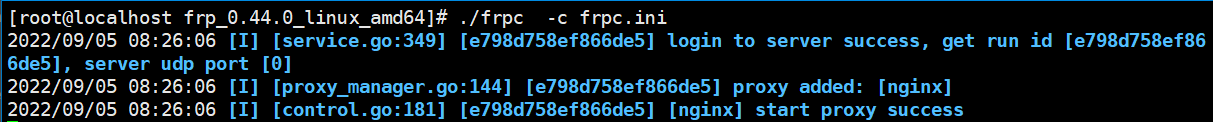

e.启动客户端
客户端也正常启动，没有报错

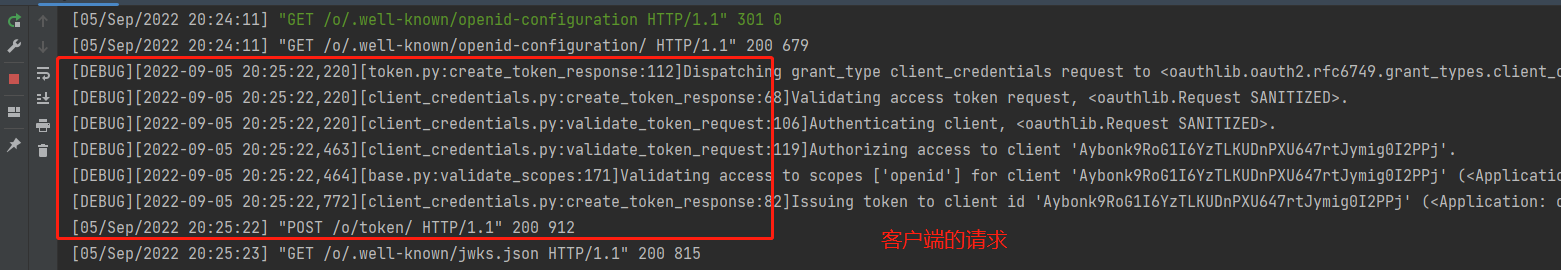

会发现django服务有请求如下
说明请求成功，客户端的端口也已经映射到服务器上面了
错误解决
1.token格式不对，compact JWS format must have three parts
2022/09/05 08:28:55 [E] [service.go:340] invalid OIDC token in login: oidc: malformed jwt: square/go-jose: compact JWS format must have three parts 2022/09/05 08:28:55 [W] [service.go:128] login to server failed: invalid OIDC token in login: oidc: malformed jwt: square/go-jose: compact JWS format must have three parts invalid OIDC token in login: oidc: malformed jwt: square/go-jose: compact JWS format must have three parts
这个需要oidc返回jwt格式的数据，也就是 xxx.xxx.xxx 类似用电分割的加密数据
2.iss不一致，id token issued by a different provider
2022/09/05 08:30:50 [E] [service.go:340] invalid OIDC token in login: oidc: id token issued by a different provider, expected "http://127.0.0.1:8000/o" got "" 2022/09/05 08:30:50 [W] [service.go:128] login to server failed: invalid OIDC token in login: oidc: id token issued by a different provider, expected "http://127.0.0.1:8000/o" got "" invalid OIDC token in login: oidc: id token issued by a different provider, expected "http://127.0.0.1:8000/o" got ""
这个需要在生成jwt的时候，加上iss字段
3.audience不正确，oidc: expected audience "openid"
2022/09/05 08:32:17 [E] [service.go:340] invalid OIDC token in login: oidc: expected audience "openid" got [] 2022/09/05 08:32:17 [W] [service.go:128] login to server failed: invalid OIDC token in login: oidc: expected audience "openid" got [] invalid OIDC token in login: oidc: expected audience "openid" got []
这个需要在生成jwt的时候，加上openid字段，并且和配置文件保持一致
参考文档
OpenID Connect — Django OAuth Toolkit 2.1.0 documentation
