CentOS搭建OpenVPN服务

OpenVPN是一个开源的虚拟专用网络(VPN)软件,可以用于在不安全的网络上为用户提供安全的网络连接。它使用加密的数据通道来确保数据的安全性,并可以通过多种方式来构建虚拟网络,包括使用TCP和UDP协议,使用安全套接字层(SSL)或传输层安全(TLS)加密数据通道,或者使用混合模式,即同时使用多种方式。


OpenVPN可以在多种平台上运行,包括Windows、MACOS、Linux、Android和iOS等。它可以与多种路由器和网络设备集成,并提供了丰富的配置选项,使用者可以根据自己的需要来自定义设置。
支持多种加密算法:OpenVPN支持使用多种加密算法来保护数据的安全性,包括AES、Blowfish、CAST-128、DES、3DES、RC5和IDEA等。
支持多种协议:OpenVPN可以支持TCP或UDP协议来建立虚拟网络,并支持使用SSL或TLS来加密数据源。

OpenVPN应用场景:
1、通过VPN远程连接到公司的服务器,企业员工远程办公,访问公司内网的ERP、OA等系统。
2、总部与分支机构之间连通,打通分支与总部的连接。

环境搭建:
1、环境准备:
1)安装easy-rsa:
[root@localhost ~]# yum install -y easy-rsa

2)配置系统转发:
[root@localhost ~]# echo net.ipv4.ip_forward=1 >> /etc/sysctl.conf[root@localhost ~]# sysctl -pnet.ipv4.ip_forward = 1

3)关闭防火墙:
[root@localhost ~]# systemctl stop firewalld && systemctl disable firewalldRemoved symlink /etc/systemd/system/multi-user.target.wants/firewalld.service.Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.[root@localhost ~]#

2、服务器环境搭建:
1)安装openvpn
[root@localhost ~]# yum install -y openvpn

2)生成服务器端证书:
查看easy-rsa安装路径:
[root@localhost ~]# rpm -ql easy-rsa

复制easy-rsa到/etc/openvpn目录:
[root@localhost ~]# cp -/usr/share/easy-rsa/ /etc/openvpn/easy-rsa

复制easy-rsa配置文件到/etc/openvpn/easy-rsa/3.0.8目录,并重命名为vars:
[root@localhost ~]# cp -/usr/share/doc/easy-rsa-3.0.8/vars.example /etc/openvpn/easy-rsa/3.0.8/vars

查看/etc/openvpn目录:
[root@localhost ~]# tree /etc/openvpn/etc/openvpn├── client├── easy-rsa   ├── 3 -> 3.0.8   ├── 3.0 -> 3.0.8   └── 3.0.8       ├── easyrsa       ├── openssl-easyrsa.cnf       ├── vars       └── x509-types           ├── ca           ├── client           ├── code-signing           ├── COMMON           ├── email           ├── kdc           ├── server           └── serverClient└── server
7 directories, 11 files

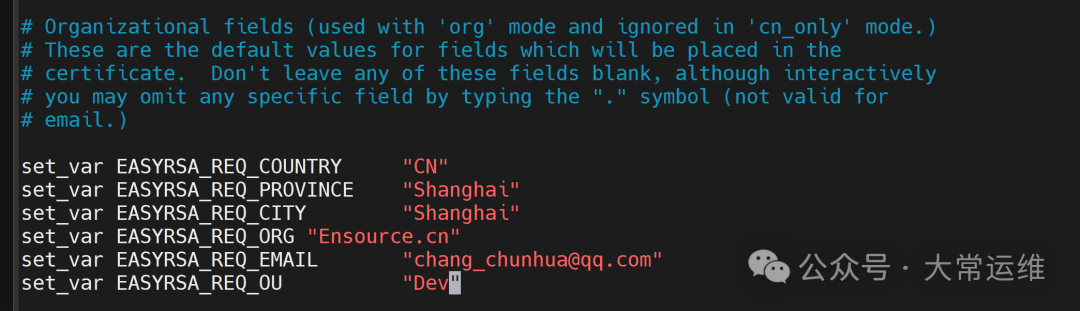

修改证书配置文件vars,其他的默认即可,主要是修改个人信息,也可以不修改。

初始化:
[root@localhost 3.0.8]# ./easyrsa init-pki
Note: using Easy-RSA configuration from: /etc/openvpn/easy-rsa/3.0.8/vars
init-pki complete; you may now create a CA or requests.Your newly created PKI dir is/etc/openvpn/easy-rsa/3.0.8/pki



为了方便安装测试,这里使用nopass参数选择不要密码创建根证书:
[root@localhost 3.0.8]# ./easyrsa build-ca nopass
Note: using Easy-RSA configuration from/etc/openvpn/easy-rsa/3.0.8/varsUsing SSL: openssl OpenSSL 1.0.2k-fips  26 Jan 2017Generating RSA private key, 2048 bit long modulus...........................................................+++...................+++is 65537 (0x10001)You are about to be asked to enter information that will be incorporatedinto your certificate request.What you are about to enter is what is called a Distinguished Name or a DN.There are quite a few fields but you can leave some blankFor some fields there will be a default value,If you enter '.', the field will be left blank.-----Common Name (eg: your user, host, or server name) [Easy-RSA CA]:openvpn
CA creation complete and you may now import and sign cert requests.Your new CA certificate file for publishing is at:/etc/openvpn/easy-rsa/3.0.8/pki/ca.crt

如果没有nopass,那就需要输入密码和确认密码。

创建服务端的证书和私钥文件:
[root@localhost 3.0.8]# ./easyrsa gen-req server nopass
Note: using Easy-RSA configuration from/etc/openvpn/easy-rsa/3.0.8/varsUsing SSL: openssl OpenSSL 1.0.2k-fips  26 Jan 2017Generating a 2048 bit RSA private key....................................................................+++..........................................................................+++writing new private key to '/etc/openvpn/easy-rsa/3.0.8/pki/easy-rsa-64175.jmZTqN/tmp.8T6ZJH'-----You are about to be asked to enter information that will be incorporatedinto your certificate request.What you are about to enter is what is called a Distinguished Name or a DN.There are quite a few fields but you can leave some blankFor some fields there will be a default value,If you enter '.', the field will be left blank.-----Common Name (eg: your user, host, or server name) [server]:openvpn
Keypair and certificate request completed. Your files are:req: /etc/openvpn/easy-rsa/3.0.8/pki/reqs/server.reqkey: /etc/openvpn/easy-rsa/3.0.8/pki/private/server.key

给server端证书签名,提示confirm request details时,输入yes:
[root@localhost 3.0.8]# ./easyrsa sign server server
Note: using Easy-RSA configuration from/etc/openvpn/easy-rsa/3.0.8/varsUsing SSL: openssl OpenSSL 1.0.2k-fips  26 Jan 2017

You are about to sign the following certificate.Please check over the details shown below for accuracy. Note that this requesthas not been cryptographically verified. Please be sure it came from a trustedsource or that you have verified the request checksum with the sender.
Request subject, to be signed as a server certificate for 825 days:
subject=    commonName                = openvpn

Type the word 'yes' to continue, or any other input to abort.  Confirm request details: yesUsing configuration from /etc/openvpn/easy-rsa/3.0.8/pki/easy-rsa-64203.JCprI0/tmp.eXYBQRCheck that the request matches the signatureSignature okThe Subject's Distinguished Name is as followscommonName            :ASN.1 12:'openvpn'Certificate is to be certified until Oct  6 16:48:16 2027 GMT (825 days)
Write out database with 1 new entriesData Base Updated
Certificate created at: /etc/openvpn/easy-rsa/3.0.8/pki/issued/server.crt

创建dh文件(密钥交换算法):
[root@localhost 3.0.8]# ./easyrsa gen-dh
Note: using Easy-RSA configuration from: /etc/openvpn/easy-rsa/3.0.8/varsUsing SSL: openssl OpenSSL 1.0.2k-fips  26 Jan 2017Generating DH parameters, 2048 bit long safe prime, generator 2This is going to take a long time...............................+.......................................................................................................................................................................................................................................................................................................++*++*
DH parameters of size 2048 created at /etc/openvpn/easy-rsa/3.0.8/pki/dh.pem

创建tls认证密钥:
[root@localhost 3.0.8]# openvpn --genkey --secret ta.key

查看当前生成的文件目录结构:
[root@localhost 3.0.8]# lltotal 104-rwxr-xr-x. 1 root root 76946 Jul  4 00:13 easyrsa-rw-r--r--. 1 root root  4616 Jul  4 00:13 openssl-easyrsa.cnfdrwx------. 8 root root  4096 Jul  4 00:49 pki-rw-------. 1 root root   636 Jul  4 00:52 ta.key-rw-r--r--. 1 root root  8887 Jul  4 00:31 varsdrwxr-xr-x. 2 root root   122 Jul  4 00:13 x509-types[root@localhost 3.0.8]# tree pkipki├── ca.crt                # ca根证书、服务端和客户端都需要用├── certs_by_serial│   └── 8708CB5FFA86BA7A8CCC3F9BDA3C381C.pem├── dh.pem                # 认证算法 服务端├── index.txt├── index.txt.attr├── index.txt.attr.old├── index.txt.old├── issued│   └── server.crt        # 服务端证书├── openssl-easyrsa.cnf├── private│   ├── ca.key│   └── server.key        服务端私钥├── renewed│   ├── certs_by_serial│   ├── private_by_serial│   └── reqs_by_serial├── reqs│   └── server.req├── revoked│   ├── certs_by_serial│   ├── private_by_serial│   └── reqs_by_serial├── safessl-easyrsa.cnf├── serial└── serial.old
12 directories, 15 files

拷贝证书文件到openvpn目录下:
[root@localhost ~]# mkdir /etc/openvpn/certs[root@localhost 3.0.8]# cp ./pki/ca.crt /etc/openvpn/certs[root@localhost 3.0.8]# cp ./pki/dh.pem /etc/openvpn/certs[root@localhost 3.0.8]# cp ./pki/issued/server.crt /etc/openvpn/certs[root@localhost 3.0.8]# cp ./pki/private/server.key /etc/openvpn/certs[root@localhost 3.0.8]# cp ta.key /etc/openvpn/certs

创建Server配置文件:
复制配置文件模板文件到server.conf到/etc/openvpn/
[root@localhost 3.0.8]# cp /usr/share/doc/openvpn-2.4.12/sample/sample-config-files/server.conf /etc/openvpn/

修改server.conf配置文件:
[root@localhost 3.0.8]# cd /etc/openvpn[root@localhost openvpn]# lltotal 12drwxr-xr-x. 2 root root       84 Jul  4 00:58 certsdrwxr-x---. 2 root openvpn     6 Mar 18  2022 clientdrwxr-xr-x. 3 root root       39 Jul  4 00:13 easy-rsadrwxr-x---. 2 root openvpn     6 Mar 18  2022 server-rw-r--r--. 1 root root    10784 Jul  4 01:01 server.conf[root@localhost openvpn]# vim server.conf

配置文件内容如下:
#监听本机ip地址
local 0.0.0.0
#(这里填本机地址)
#监控本机端口号
port 1194
#指定采用的传输协议,可以选择tcp或udp
proto tcp
#指定创建的通信隧道类型,可选tun或tap,window服务器必须是tap
dev tun
#指CA证书的文件路径
ca /etc/openvpn/certs/ca.crt
#指定服务器端的证书文件路径
cert /etc/openvpn/certs/server.crt
#指定服务器端的私钥文件路径
key /etc/openvpn/certs/server.key
dh /etc/openvpn/certs/dh.pem
#指定虚拟局域网占用的IP地址段和子网掩码,不能和服务器eth0同网段
server 10.8.0.0 255.255.255.0
#服务器自动给客户端分配IP后,客户端下次连接时,仍然采用上次的IP地址(第一次 分配的IP保存在ipp.txt中,下一次分配其中保存的IP)。
ifconfig-pool-persist ipp.txt
#自动推送客户端上的网关及DHCP,此项开启了流量转发,有这项才能使用服务器代理上 网
push "redirect-gateway def1 bypass-dhcp"
#OpenVPN的DHCP功能为客户端提供指定的 DNS、WINS 等
push "dhcp-option DNS 114.114.114.114"
#允许客户端与客户端相连接,默认情况下客户端只能与服务器相连接
client-to-client
#允许同一个客户端证书多次登录,看需配置#duplicate-cn#每10秒ping一次,连接超时时间设为120秒
keepalive 10 120
#开启TLS-auth,使用ta.key防御攻击。服务器端的第二个参数值为0,客户端的为1。
tls-auth /etc/openvpn/certs/ta.key 0
#加密认证算法,2.4之前是AES-256-CBCcipher AES-256-GCM#使用lzo压缩的通讯,服务端和客户端都必须配置
comp-lzo
#最大连接用户
max-clients 100
#定义运行的用户和组,openvpn用户是安装的时候系统自动创建的
user openvpn
group openvpn
#重启时仍保留一些状态
persist-keypersist-tun
#输出短日志,每分钟刷新一次,以显示当前的客户端
status /var/log/openvpn-status.log
#日志保存路径
log /etc/openvpn/log/openvpn.log
log-append /etc/openvpn/log/openvpn.log
#指定日志文件的记录详细级别,可选0-9,等级越高日志内容越详细
verb 3
#相同信息的数量,如果连续出现 20 条相同的信息,将不记录到日志中
mute 20
#下面这项只能udp连接开启
#explicit-exit-notify 1
#设置tls最低版本为1.3,连接的客户端如果是2.4以下则配置为1.0
tls-version-min 1.3
说明:配置文件的配置选项越多,说明这个软件的有丰富的功能,我们可以根据配置文件进行自定义。

创建启动服务的脚本:
[root@localhost openvpn]# cat /lib/systemd/system/openvpn.service[Unit]Description=OpenVPN Robust And Highly Flexible Tunneling Application On %IAfter=network.target[Service]Type=notifyPrivateTmp=trueExecStart=/usr/sbin/openvpn --cd /etc/openvpn/ --config /etc/openvpn/server.conf[Install]WantedBy=multi-user.target


设置openvpn开机自启动:
[root@localhost openvpn]# systemctl enable openvpnCreated symlink from /etc/systemd/system/multi-user.target.wants/openvpn.service to /usr/lib/systemd/system/openvpn.service.

启动openvpn:
[root@localhost openvpn]# systemctl start openvpn

查看端口和进程是否启动:
[root@localhost openvpn]# netstat -atunlp |grep openvpntcp        0      0 0.0.0.0:1194            0.0.0.0:*               LISTEN      64435/openvpn      [root@localhost openvpn]# lsof -i:1194COMMAND   PID    USER   FD   TYPE DEVICE SIZE/OFF NODE NAMEopenvpn 64435 openvpn    6u  IPv4  76576      0t0  TCP *:openvpn (LISTEN)[root@localhost openvpn]#[root@localhost openvpn]#[root@localhost openvpn]# ps -ef |grep openvpnopenvpn   64435      1  0 01:22 ?        00:00:00 /usr/sbin/openvpn --cd /etc/openvpn/ --config /etc/openvpn/server.confroot      64470   1454  0 01:24 pts/0    00:00:00 grep --color=auto openvpn
