一个强大的LogParser的UI工具--logparserlizard简介

日志分析，特别是IIS日志，一般人都会想到LogParser工具，的确很强。但是命令行的操作界面令很多非专业的管理人员望而生畏，现在好了，有一个可视化的LogParser的UI工具可以使用了！
Log Parser Lizard 1.1，这是一款用Vc++.net写的logParser增强工具。主要有以下特点：
1、封装了logParser命令，带图形界面，大大降低了LogParser的使用难度。
2、集成了几个开源工具，如log4net等。可以对IIS logs/EventLogs/active directory/log4net/File Systems/T-SQL进行方便的查询。
3、集成了Infragistics.UltraChart.Core.v4.3、Infragistics.Excel.v4.3.dll等，使查询结果可以方便的以图表或EXCEL格式展示。
4、集成了常见的查询命令，范围包含六大模块:IIS
5、可以将查询过的命令保存下来，方便再次使用。

最重要的是，它是完全免费的。
下载地址为：
http://www.brothersoft.com/log-parser-lizard-download-238815.html

需要先安装LogParser 2.2，下载地址：
http://www.microsoft.com/DownLoads/details.aspx?FamilyID=890cd06b-abf8-4c25-91b2-f8d975cf8c07&displaylang=en

下载后4.9M的一个MSI文件，直接安装即可。注意安装位置尽量不要带空格。

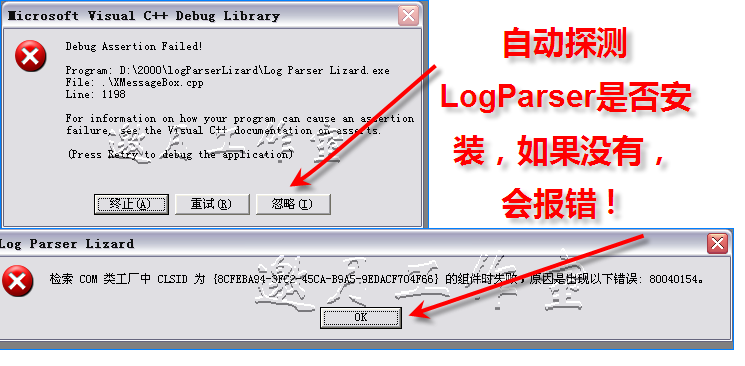

注意：如果LogParser没有安装，会运行出错！

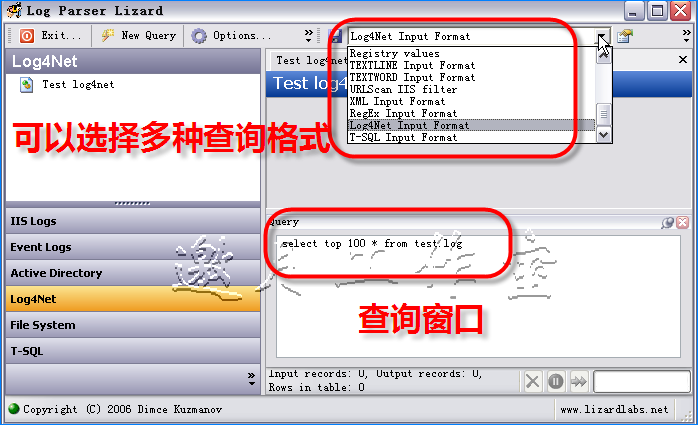

初始界面如图：

下面以一个检查IISLog的例子来比较LogParser与LogParserLizard的区别。
某日早上，发现网站阻塞，

第一种速查方案：
迅速启动LogParser:
进入命令行模式：
输入：LOGPARSER -i:IISW3C file:D:/Log/log_SQL/Slowest10IPInIIS_MySite.sql -o:DataGrid -q:off
其中,Slowest20FilesInIIS_MySite.sql的内容如下：

[ruby] view plain copy

--rem 运行最慢的２０个页面
--Finding the 20 slowest pages in your Web site
Select Top 20
LogRow as [Line Number],
date as [Date],
time as [Time],
c-ip as [Client-IP],
s-ip as [Server IP],
s-port as [Server Port],
cs-method as [Request Verb],
cs-uri-stem as [Request URI],
sc-bytes as [Bytes sent],
sc-status as [Status],
sc-substatus as [Sub-status],
sc-win32-status as [Win 32 Status],
time-taken as [Time Taken]
From
D:/Log/log_SQL/LogFiles/ex*.log
Order by time-taken desc

--rem 运行最慢的２０个页面--Finding the 20 slowest pages in your Web siteSelect Top 20 LogRow as [Line Number], date as [Date], time as [Time], c-ip as [Client-IP], s-ip as [Server IP], s-port as [Server Port], cs-method as [Request Verb], cs-uri-stem as [Request URI], sc-bytes as [Bytes sent], sc-status as [Status], sc-substatus as [Sub-status], sc-win32-status as [Win 32 Status], time-taken as [Time Taken]From D:/Log/log_SQL/LogFiles/ex*.logOrder by time-taken desc

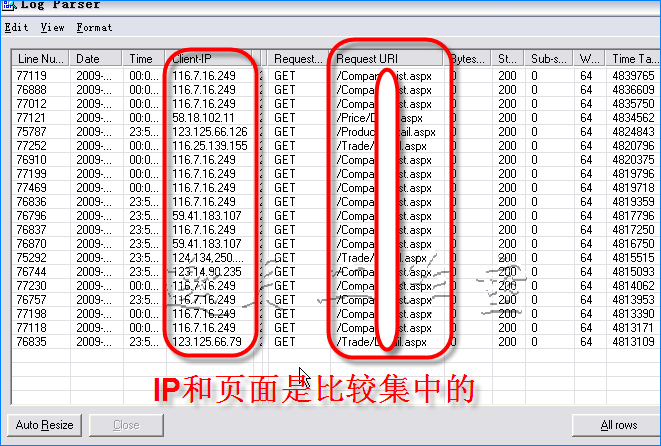

执行结果如图：

从图中可以看出，访问最慢而且最频繁的页面是/Company/List.aspx,　而且集中在一个IP： 116.7.16.249 ，基本可以肯定主·这是有人恶意爬数据，再输入：

LOGPARSER -i:IISW3C file:D:/Log/log_SQL/Slowest10IPInIIS_MySite.sql -o:DataGrid -q:off
其中,Slowest10IPInIIS_MySite.sql的内容如下：

[ruby] view plain copy

--rem 访问量最大的IP的访问明细
Select cs-uri-stem as [RequestURI],count(cs-uri-stem) as VisitCounts,c-ip as [ClientIP]
FROM
D:Log/log_SQL/LogFiles/ex090829.log
group by cs-uri-stem,c-ip
ORDER BY VisitCounts DESC

--rem 访问量最大的IP的访问明细Select cs-uri-stem as [RequestURI],count(cs-uri-stem) as VisitCounts,c-ip as [ClientIP]FROM D:Log/log_SQL/LogFiles/ex090829.loggroup by cs-uri-stem,c-ip ORDER BY VisitCounts DESC

启动管理工具，禁IP！！！

第二种速查方案：
启动logParserLizard,在界面中选择IIS Log--"New Query"--格式选"IIS W3C Logs"

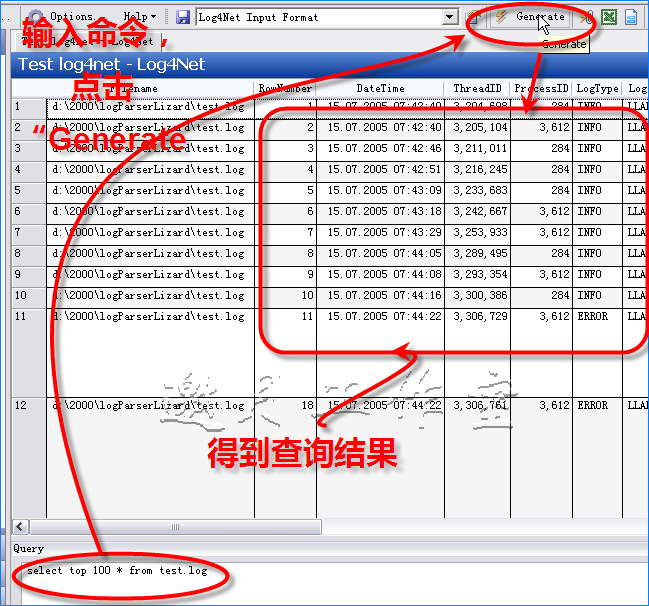

在查询窗口输入同样的SQL,点击"Generate"

[ruby] view plain copy

--rem 运行最慢的２０个页面
--Finding the 20 slowest pages in your Web site
Select Top 20
LogRow as [Line Number],
date as [Date],
time as [Time],
c-ip as [Client-IP],
s-ip as [Server IP],
s-port as [Server Port],
cs-method as [Request Verb],
cs-uri-stem as [Request URI],
sc-bytes as [Bytes sent],
sc-status as [Status],
sc-substatus as [Sub-status],
sc-win32-status as [Win 32 Status],
time-taken as [Time Taken]
From
D:/Log/log_SQL/LogFiles/ex*.log
Order by time-taken desc

--rem 运行最慢的２０个页面--Finding the 20 slowest pages in your Web siteSelect Top 20 LogRow as [Line Number], date as [Date], time as [Time], c-ip as [Client-IP], s-ip as [Server IP], s-port as [Server Port], cs-method as [Request Verb], cs-uri-stem as [Request URI], sc-bytes as [Bytes sent], sc-status as [Status], sc-substatus as [Sub-status], sc-win32-status as [Win 32 Status], time-taken as [Time Taken]From D:/Log/log_SQL/LogFiles/ex*.logOrder by time-taken desc

得到如下结果：

再在查询窗口输入

[ruby] view plain copy

--rem 访问量最大的10个IP
--Finding the 10 most ClietnIPs in your Web site
Select Top 10
c-ip as [MostIP],
COUNT(*) AS VisitCounts
FROM
D:/Log/log_SQL/LogFiles/ex090829.log
Group by c-ip ORDER BY VisitCounts DESC

--rem 访问量最大的10个IP--Finding the 10 most ClietnIPs in your Web siteSelect Top 10 c-ip as [MostIP], COUNT(*) AS VisitCountsFROM D:/Log/log_SQL/LogFiles/ex090829.logGroup by c-ip ORDER BY VisitCounts DESC

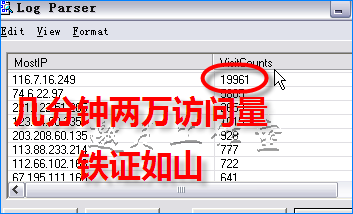

得到下图：

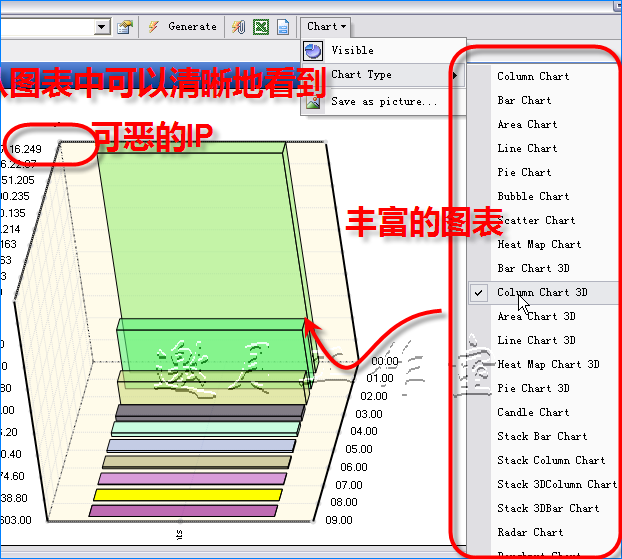

且慢，右上角，Chart，打开一看，好多的饼图哟，

处理方法同上。
